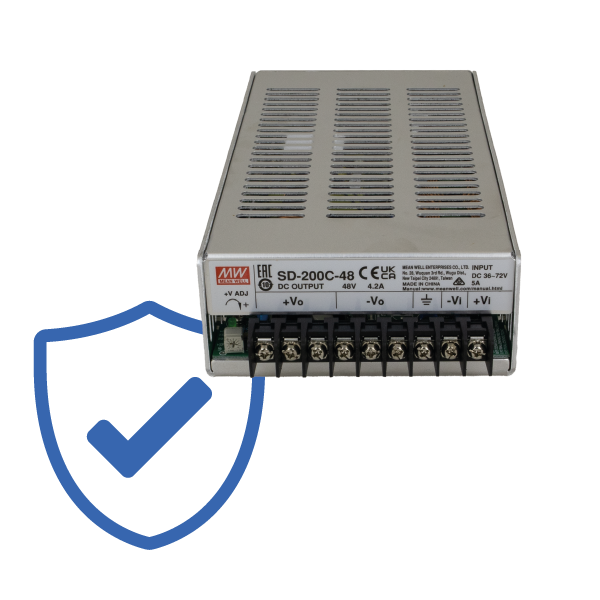

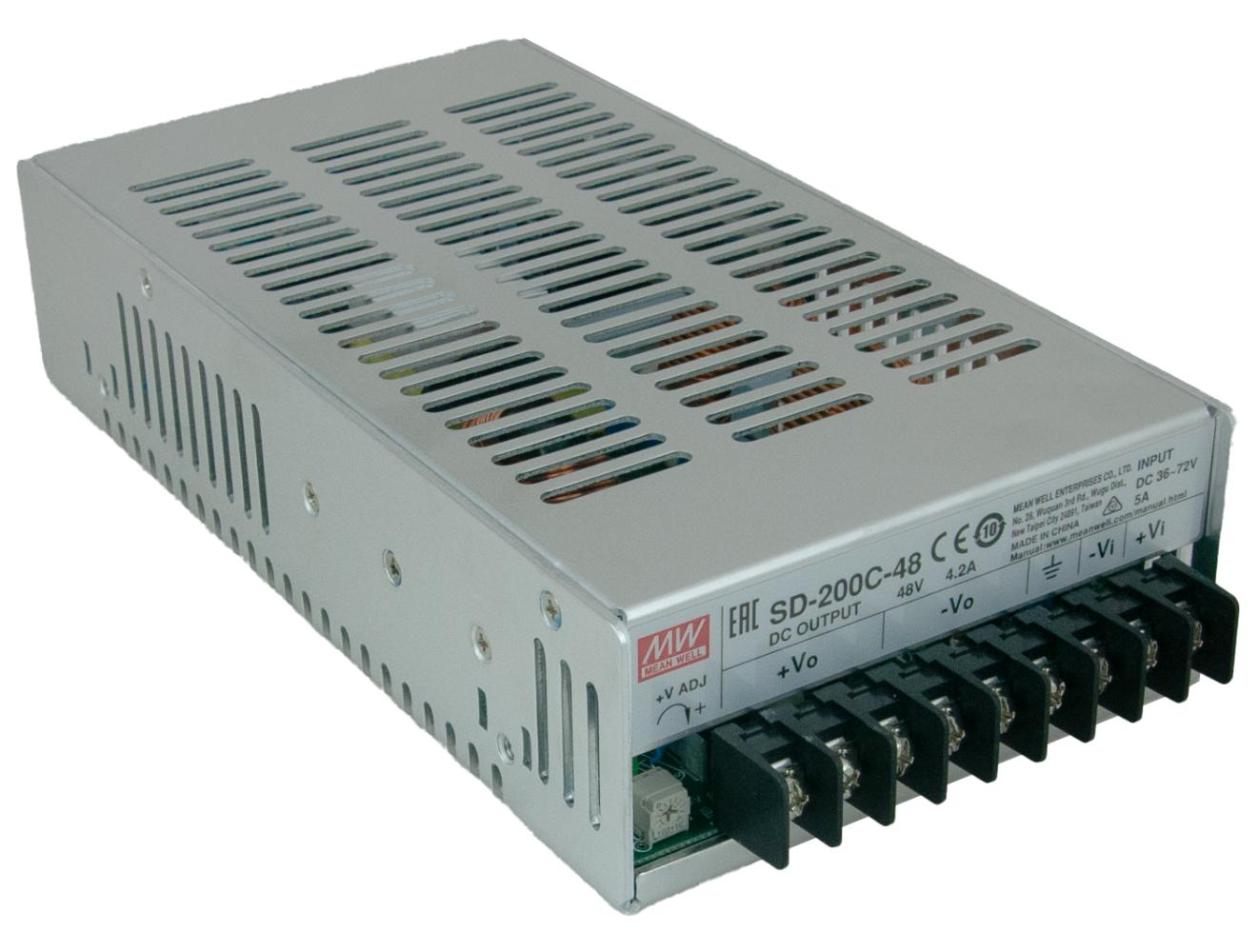

Przetwornica DC/DC 48V/48V- 4.2A SD-200C-48
Cena
278,52 zł
342,58 zł z VAT
favoriteDodaj do listy życzeń
DDC converter with 48V output voltage and wide input voltage range. Another feature of this converter is the complete separation of the input and output circuits. There is no galvanic connection between the ground of the input and output as is the case with typical converters.
Specification:
| SD-200C-48 | ||
| Output | Constant voltage | 48 V |
| Rated current | 4,2 A | |
| Rated power | 201,6 W | |
| Range | 43 - 53 VDC | |

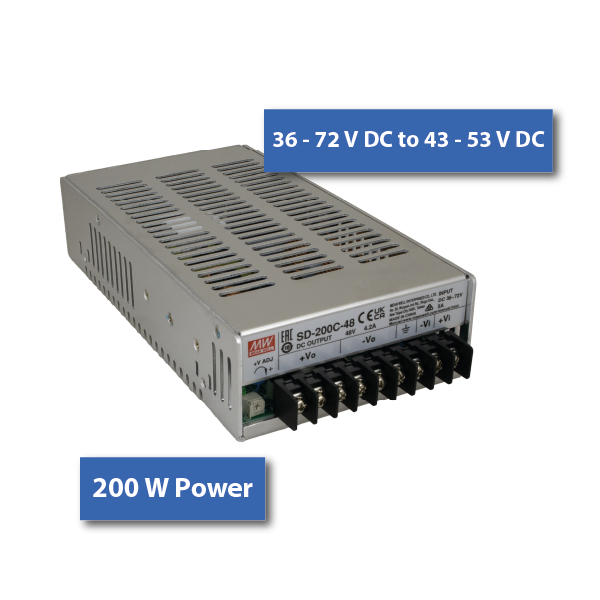

| Input | Voltage range | 36 - 72 VDC |
| Efficiency | 86% | |
| DC current | 5A / 48V | |
| Inrush current | 45A / 48 VDC | |
| Working environment | Working temperature | From -20 to 60 °C |
| Permissible humidity | 20%-90% non-condensing | |
| Storage temperature | From -40 to 85 °C | |
| Permissible storage humidity | 10%-90% non-condensing | |
| Vibes | 10 - 500 Hz, 2G 10 min. / 1 cycle, 60 min. | |

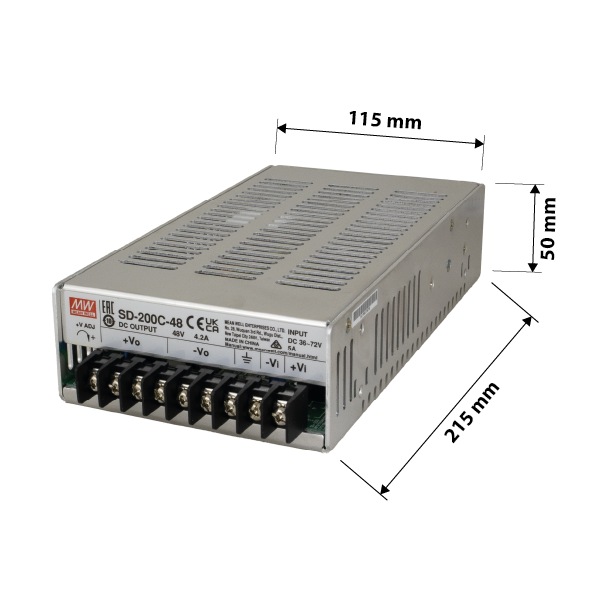

| Others | Dimensions | 215x115x50 mm |
| Weight | 1,1 kg | |
