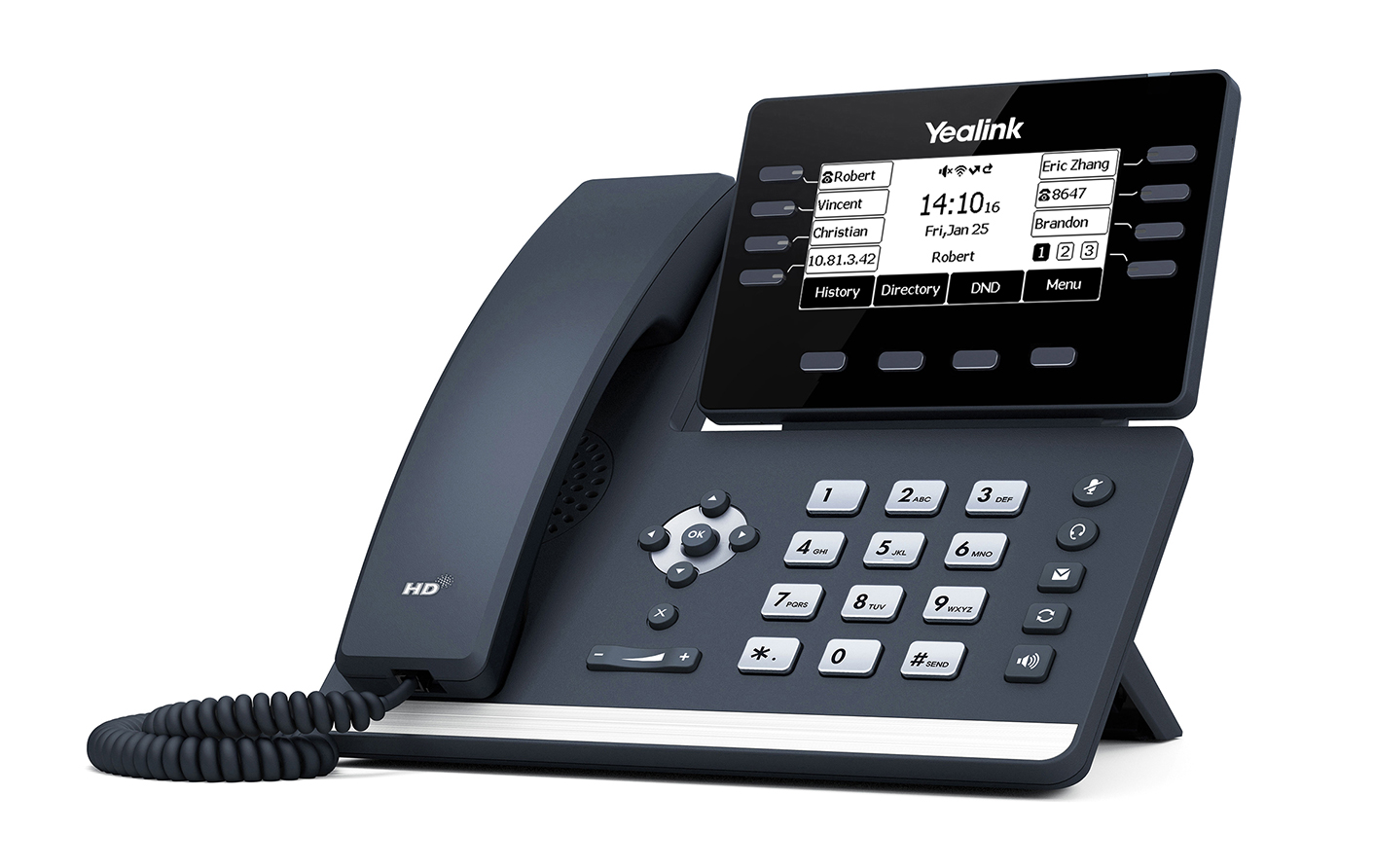

Yealink SIP-T53W telefon VoIP z PoE, gigabitowymi portami Ethernet, WiFi i Bluetooth, 12 SIP

CDR / VoIP

Yealink SIP-T53W telefon VoIP z PoE, gigabitowymi portami Ethernet, WiFi i Bluetooth, 12 SIP

Producent: Yealink

Kod produktu: YL-SIP-T53W

Numer katalogowy: 7201

Gwarancja (miesiące):

Dostawa w 48 godzin

Cena

886,95 zł

1 090,95 zł z VAT

favoriteDodaj do listy życzeń

Opis

The Yealink SIP-T53W is a VoIP phone that supports 12 SIP accounts. It has been equipped with 2 gigabit Ethernet ports and a monochrome LCD display with a resolution of 360x160px (3.7 "). The device supports PoE in the 802.3af standard, it can also be powered by a DC jack (5V). The phone is equipped with a speaker and handset that supports HD audio and Optima technology which further improves the quality of the conversation. On the side there is an RJ-9 port for connecting a hands-free set and a USB 2.0 port. The device supports Bluetooth 4.2 for connecting a wireless headset, synchronization of contacts and Bluetooth connections. It also supports dual-band WiFi 2.4 / 5 GHz with a maximum theoretical bandwidth of 433 Mb / s (IEEE 802.11 a / b / g / n / ac standards) In addition, the phone has a USB 2.0 port to which you can connect a headset, USB (flash) drive or EXP50 secretarial modules ( up to 3 modules).

The offered product supports modern voice codecs: Opus, G.722, PCMA, PCMU, G.729A / B, G.726, G.723.1, iLBC. An important advantage is the extensive provisioning that facilitates remote device configuration and eliminates the need to manually select options. SIP-T53W uses RPS (Redirection and Provisioning Service) and a special boot mechanism to support zero touch provisioning. It is compatible with 3CSX and Broadsoft Broadworks as well as Asterisk.

Warning! The set does not include the power supply!

The most important features:

support for 12 SIP accounts;
2 gigabit Ethernet ports;
built-in Bluetooth 4.2;
built-in dual-band WiFi (2.4 and 5 GHz);
360x160px (3.7 ") monochrome LCD display;
RJ-9 connector for connecting a headset / hands-free kit;
USB port with the possibility of connecting a headset, disk or EXP50 secretary module;
Opus codec, G.722, PCMA, PCMU, G.729A / B, G.726, G.723.1, iLBC;
extensive provisioning;
PoE 802.3af support.

Specification

Physical properties
SIP-T53W
HD sound	Loudspeaker and earpiece HAC Acoustic cover
Codecs	Opus G.722 PCMA PCMU G.729A/B G.726 G.723.1 iLBC
DTMF	In-band Out-of-band (RFC 2833) SIP INFO
Other audio features	Hands-free function in full duplex with AEC VAD, CNG, PLC, AJB, AGC
Phone properties	12 VoIP accounts Putting calls on hold Muting DND Redial Callback automatic answer Speed Dial Call forwarding Waiting calls Call transfer Hands-free function Hotline SMS Emergency calls A three-way conference Direct IP connection without SIP proxy Selecting / importing / deleting a ringtone Manual or automatic date and time setting Numbering plan XML browsing Action ULR / URI RTCP-XR (RFC3611) VQ-RTCPXR (RFC6035) Built-in WiFi: 2.4 and 5 GHz band 802.11 b / g / n (2.4 GHz) / 802.11 a / n / ac (5 GHz) standards theoretical throughput of 433 Mb / s Built-in Bluetooth 4.2: possibility of connecting a headset synchronization of contacts Bluetooth connection USB 2.0 port: possibility of connecting a headset recording of calls to a USB drive (flash) optional EXP50 secretary module (max. 3) Content sharing (Yealink VCD) Advanced DSS key
Phone book	Up to 1000 entries Black list XML / LDAP remote book Intelligent Search Book search / import / export Call History: Dialed / Answered / Missed / Forwarded
DECT functionality (DD10K module required)	Up to 4 DECT phones can be connected 4 simultaneous connections Supported phones: Yealink W52H / W53H / W56H / DD DECT phones in Slave mode
Properties of IP-PBX	Busy Lamp Field (BLF) Bridged Line Apperance (BLA) Anonymous connections Anonymous call rejection Hot-desking voicemail Flexible seating Executive / Assistant Parking calls Call picking Screntralized call recording Call recording
Display and LEDs	Monochrome LCD display, resolution 360x160px (3.7 ") LED indicators informing about call or waiting message Two-color LEDs (red / green) informing about the line status Multi-language interface Caller ID with number and name Energy efficiency
Buttons	8 line buttons with LEDs Line buttons can be programmed with up to 21 different functions 5 function buttons: mute, earpiece, message, redial, loudspeaker 4 contextual buttons 6 navigation buttons Volume control Illuminated buttons mute / earpiece / speaker
Interfaces	2 gigabit Ethernet ports 10/100/1000 Mb / s Power over Ethernet (IEEE 802.3af) class 2 1 USB 2.0 port 1 RJ-9 (4P4C) port for connecting a handset 1 RJ-9 port (4P4C) for headset connection
Network and security	SIP v1 (RFC 2543), v2 (RFC3261) Call server redundancy NAT traversal - STUN mode Proxy mode Peer-to-peer SIP link mode Static IP / DHCP / PPPoE HTTP / HTTPS web server Date and time synchronization using SNTP UDP / TCP / DNS-SRV (RFC 3263) QoS: 802.1p / Q tagging (VLAN) SRTP voice Transport Layer Security (TLS1.2) HTTPS certificate manager AES encryption of the configuration file Deep Authentication OpenVPN, IEEE 802.1X IPv6 LLDP / CDP / DHCP VLAN ICE
Management	Configuration via: browser / phone / auto-provisioning Auto provisioning via FTP / TFTP / HTTP / HTTPS Auto provisioning using PnP Broadsoft management Zero-sp-touch TR-069 Phone lock to protect privacy Factory reset, reset Exporting packet routing System logs
Montage	On desk
USB output power	Voltage 5V DC Current 500 mA
Maximum power consumption (power supply)	1,3 - 2,3 W
Maximum power consumption (PoE)	1,8 W - 3,1 W
Dimensions	212 x 210,6 x 174,5 x 41,7 mm
Permissible air humidity	10%-95%
Permissible temperature	From 0 to 40 °C
The composition of the kit	Telephone Earphone Ethernet patch cord stand Quick Installation Guide
